Digital Combined Dual Element PIR and Microwave Blue Wave Technology
Anti Masking Detector KX15DTAM

Main Features

Unique Patented Anti-Masking Detection

Dual Element Pyro-Electric Sensor

Blue Wave Technology

Selectable EOL (End of Line) Resistors

Selectable 15m Volumetric Dual Technology, 18m Vertical Curtain PIR or 30m Long Range PIR

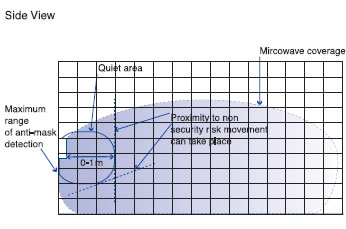

0 – 1m Adjustable Mask Detection

Active Self Test

Remote Set Input

Anti Blocking Technology

Patented Independent Floating Thresholds

Adjustable Sensitivity Settings

Digital Temperature Compensation

AND / OR Technology

X-band DRO based Microwave

5 Year manufacturers warranty

ELECTRICAL SPECIFICATION

Electrical

Operating Voltage

9 - 16VDC (12V nominal)

Current Consumption - No Alarm State

23mA

Current Consumption - Alarm State

30mA

Relay

Solid State

Relay Output

60VDC, 50mA, Protected

Tamper Switch

12V max, 50mA max

RFI Immunity to Continuous Wave (CW) 80 – 2000MHz

75V/m

RFI Immunity to Amplitude Modulation (AM) 80 – 2000MHz

25V/m

RFI Immunity to Pulse Modulation (PM) 80 – 2000MHz

25V/m

FCC approved frequencies:

10.515, 10.525, 10.535GHz

PTT approved frequencies:

9.87, 9.90, 9.91GHz


Operating Features

Alarm period of

2.5 seconds

Detection Speed

0.3 - 3m/s

Operating Temperature

-30oC to +70oC

Storage Temperature

-40oC to +80oC


Optical

White Light Filter

6500 Lux

Optics

Sealed

Lens

Fresnel array, ‘Grooves in’ infrared compensated

Protection

Ultraviolet Light Filter

Tilt Adjustment

0o – 12o


Mounting

Optimum Coverage Height (dual technology)

1.8-2.4m

Optimum Coverage Height (Vertical Curtain)

1.8-4.0m

Optimum Coverage Height (Long Range)

1.8-2.4m


DISTRIBUTOR PACKING INFORMATION

Minimum Pack

Warranty

Weight (Kg)

Manufactured

10

5

1.8000

UK


PRODUCT FEATURES

FEATURE

DESCRIPTION

BENEFITS

Independent Mask Relay

In the event of one of the technologies being masked, the KX15DTAM will go into a mask fault condition. The mask relay will open. This can be connected to the 24hr zone of a control panel

Immediate alert in the event of a sabotage attempt

Selectable EOL Resistors

The KX15DTAM incorporates selectable alarm resistor values of 6K8, 5K6, 4K7,1K and tamper values of 5K6, 4K7, 2K2, 1K and mask/fault values of 15K, 12K, 8K2, 6K8, 5K6, 4K7, 2K2 and 1K catering for most control panels on the market.

Completely eliminates the need for separate resistors, therefore reducing installation time

Dual Technology or PIR Mode

Option to select between volumetric dual technology, vertical curtain PIR or long range PIR

3 Products in 1

Active Self Test

If there is no activation after a 5 hour period the KX15DTAM will actually self test both the PIR and microwave

Unique to Pyronix, this ensures that the detector is always operating effectively

Patented Independent Floating Thresholds (IFT)

This technology patented by Pyronix allows the detector to respond to the environmental changes by automatically adjusting its levels of immunity to background disturbances.

Greater stability, reduces risk of false alarm activations

Adjustable Sensitivity Settings

High sensitivity for use in areas where fast detection is required. Adjustable sensitivity settings for installations in a more hostile environment

Ensures suitability for most environments

Digital Temperature Compensation

When the product is used in a hot environment this technology digitally adjusts the detector’s sensitivity allowing it to regain its range even when the external temperature equals the external body temperature of 32oC

Guarantees optimum performance at all times

AND / OR Technology

AND’ mode operates as a standard dual technology detector. ‘OR’ mode can switch to microwave detection only to overcome cloaking attempts and the traditional vulnerability of PIR detection in environments where the ambient temperature is equal to body temperature.

Overcomes cloaking attempts and therefore is ideal in high security environments

Selectable Mask Security Mode

For high security applications. Provides blocking detection in day mode.

Provides against accidental or deliberate blocking

Triple LED indication

Microwave - orange, PIR - green, alarm - blue

The technology activated can be easily identified

Frequency options

The KX15DTAM is available in 3 different frequencies

Eliminates the risk of ‘cross talk’ between detectors located within the same room / environment

X-band DRO based microwave

Metalised microwave housing

Eliminates back lobe radiation

Tamper Proof Brackets

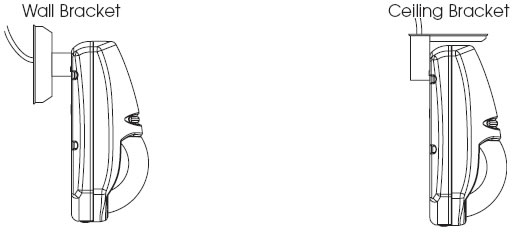

Supplied with both wall and ceiling mount brackets which provides access for up to two 8 core cables. (Tamper kit optional)

Allows ease of installation whilst enhancing tamper protection


EN50131

Security Grading

Environmental Class

ATS

3

2

N/A


LENS COVERAGE

SUPPLIED

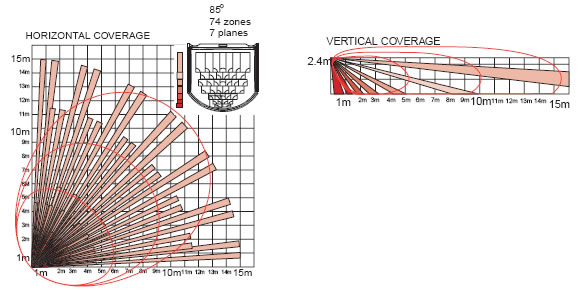

15m Volumetric

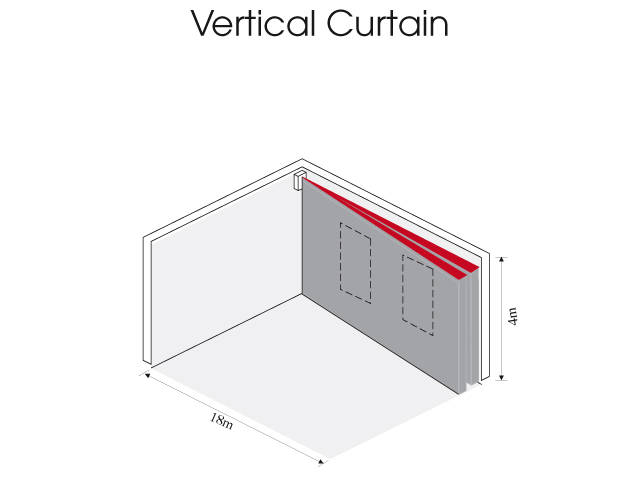

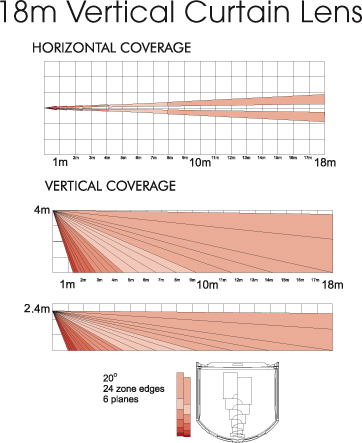

18m Vertical Curtain

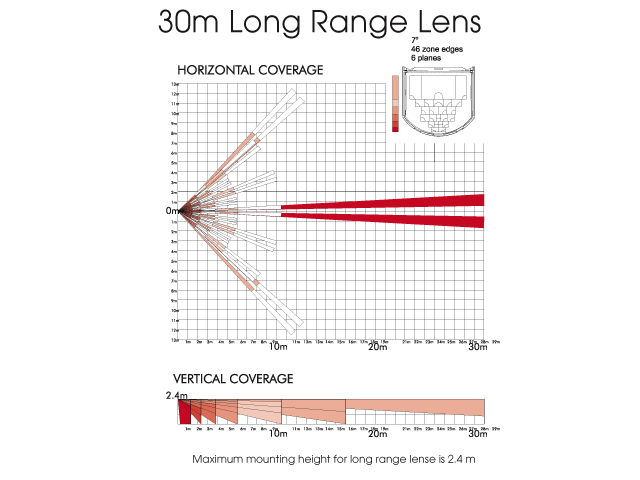

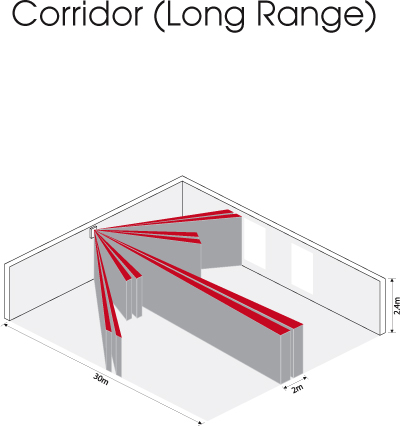

30m Long Range
