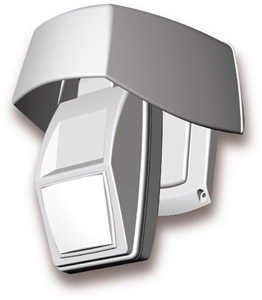

"MRX-300"

The MRX-300 outdoor motion detector is a triple technology detector that combines Microwave and Dual Horizontally Opposed Mirror Optic PIRs into one single all-weather detector. The MRX 300 is specifically designed for extreme outdoor conditions and its exclusive mirror optic design provides the maximum amount of coverage in a horizontal plane, in the same manner as human eyes. It comes mounted in an industrial grade housing with a pan/tilt swivel bracket that provides swivel within 100 degrees of range and tilt within 10 degrees.

The MRX-300 allows the installer to design security in outdoor applications that in the past were impossible to provide. This opens a whole new potential source of income for alarm installers.

The MRX-300 has a 100 degrees swivel bracket that is calibrated into 1 degree segments for easy adjustment to any environment. This increases the speed of the outdoor installation and provides incredibly accurate aiming of the detection pattern. The entire detector is encased in this housing that is impervious to and unaffected by weather conditions and moisture.

Features

  • Industrial grade poly-carbonate housing and bracket for heavy duty installations

  • Twin dual-element PIR detector plus microwave sensor

  • Tamper resistant bracket

  • Dual axis tilt sensor for full anti-vandalism protection

  • IP65 rating ASIC based electronics for ultimate performance and stability

  • Greatest immunity against visible light and RFI/EMI sources

  • Up to 49 ft detection range with 90° ultra wide angle mirrors

  • up to 130 ft detection range with long range mirrors

  • Optional pet immunity masks for mirrors 22, 44, 66 and up to 99 lbs

  • Totally hidden wiring

  • Exceptionally easy installation by simple pan, tilting and locking the unit to alignment requirements

Part Number

MRX-300
MR-02 - Long Range Lens

MRX- 300 Technical Specifications

Detection Method

Double Dual PIR + MW

Frequency - Microwave

10.525 MHz - Other frequencies upon request

Mirror Optics
Wide Angle Field of View
Wide Angle Coverage


90°
49.2' x 49.2' (15m x 15m)

Long Range Coverage

83' x 9.8' (25m x 15m)

Detection Speed

1-5' /sec (0.3-1.5m/sec)

Power Input

8.2 - 16 Vdc (12 Vdc nominal)

Current Draw
Active
Standby


31 mA
21 mA

MW Sensitivity Options



MW Sensitivity Range

Yes

Alarm Output

N.O / N.C 28 Vdc 0.1A with 10 Ohm Series
Protection Resistors

Tamper Output

N.C Contacts. Rating 0.1A 28 VDC with 10 Ohm series protection resistor - open when cover is removed

Alarm Period

2 Sec +/- 0.5 Sec

RFI Protection

30V/m 10-1000 MHz

EMI

50,000 V Lightning/Power through electrical interference

Operating Temperature

-4°F to + 122°F (-20°C to + 50°C)

Mounting Height

5ft -10ft (1.5m - 3m) - Calibration Free

Dimensions

9.8" x 5.8" x 7.5" (250mm x149mm x190mm)

Weight

31.8oz (900gr)
