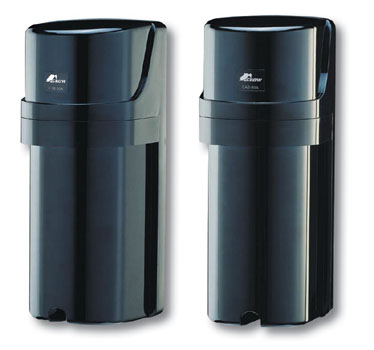

 "CAB 100T"

The CAB Series offer different sets consisting of separate transmitters and receivers with accurate performance and reliability. The transmitter emits infrared rays creating and ideal barrier that surrounds the area to be protected. The alarm is determined by the interruption of the invisible infrared beam.

A.G.C. (Automatic Gain Control) Circuit.
The A.G.C circuit continually monitors for gradual changes in the signal’s strength caused by changing weather conditions. It adjusts the sensitivity accordingly to maintain the proper signal level for the current envier mental conditions.

Rain, Dust & Insect protection
The rubber ring and rubber grommets could prevent rain, dust and tiny insects from adversely affecting performance.

Fine angel adjustment for alignment
The rotating dial allows the installer to finely adjust the beam easily either horizontally or vertically.

High grade lens
The high grade lens creates more sharply defined & precise infrared beams for poor weather conditions.

Adjustable beam interruption period
The beam interruption time can be adjusted to fit any application

Lightening & Surge protection
An improved surge absorber and high surge resistance relay will maintain stable operation even in the most lightning prone areas.



Features

  • A.G.C (Automatic Gain Control) circuit

  • Lightening & Surge protection

  • Adjustable beam interruption period (50msec~700msec)

  • High grade lens provides more sharply defined & precise infrared beams

  • Anti Frost design

Detection Range

Outdoor 300 ft (100m); Indoor 600 ft (200m)
Max Arrival Distance: 3000 ft (1000m)

Current Consumption

43 mA (Max)

Supply Voltage

10.5 V-28VDC (Non Polarity)

Detection System

Infrared Photoelectric

Infrared Beam

LED pulsed beam

Response Time

50-700 msec (adjustable)

Alarm Output

Dry connect relay NC./NO. 0.2A/30 VDC
Contact action: 0.5 sec to 2 sec

Tamper Switch Output

Dry connect relay NC./NO. 0.2A/30 VDC
(N.c. opens when cover is removed)

Alarm LED

Red LED (receiver) lights when an alarm is initiated

Functions

Monitor jack output, AGC circuit, Frost Proof cover

Alignment angel

Horizontal +/-90; Vertical +/- 10

Over Voltage Protection

10/160us 150A, 10/1000us 75A (58V to 77VDC or more)

Operating Temp.

-13F to +131F (-25C to +55C)

Mounting position

Indoor/outdoor

Wiring

Terminals

Environment Humidity

95% (max)

Weight

63.7 oz (1805 grams)

Dimensions (wXhXd)

3.94’x9.72’x3.94’ (100x247x100)

Cosmetics

PC (burglary color)

Standard Accessories

U- Shaped brackets x 4
Attenuation sheet X 1pcs
Screws (4x20 self tapping)x8
Screws (m4x30)x8
