FEATURE |
DESCRIPTION |
BENEFITS |
|
Selectable EOL Resistors |
The KX15DQ incorporates selectable alarm resistor values of 6K8, 5K6, 4K7 &1K & tamper values of 5K6, 4K7, 2K2 and 1K catering for most control panels on the market. |
Completely eliminates the need for separate resistors , therefore reducing installation time. |
|
Blue Wave Technology (BWT) |
The very latest technological development from Pyronix. |
See reverse for more detailed information |
|
Patented Independent Floating Thresholds (IFT) |
This technology patented by Pyronix allows the detector to respond to the environmental changes by automatically adjusting its levels of immunity to background disturbances. |
Greater stability, reduces risk of false alarm activations |
|
Adjustable sensitivity settings |
Higher sensitivity for use in areas where fast detection is required. Adjustable sensitivity settings for installations in a more hostile environment. |
Ensures suitability for most environments |
|
Digital Temperature Compensation |
When the product is used in a hot environment this technology digitally adjusts the detectors sensitivity allowing it to retain its range even when the external temperature equals the external body temperature of 32 DegC |
Guarantees optimum performance at all times |
|
Selectable NO or NC Relay |
The solid state relay can be selected as Normally Open (NO) or Normally Closed (NC) |
Ideal for switching electrical devices |
|

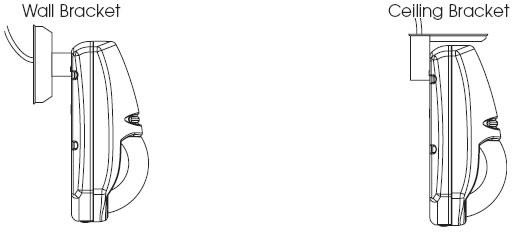

Tamper Proof Brackets |
Supplied with both wall & ceiling mount brackets which provides access for up to two 8 core cables (Tamper kit optional) |
Allows ease of installation whilst enhancing tamper protection |
|
Multi-angular LED Indication |
A clear plastic pipe channels the light from the LED to the face of the detector making the LED indication highly visible from a multitude of angles. |
Enables walk testing to be undertaken with ease and accuracy ensuring the detector covers the desired area. |
|
Sealed Optics |
Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing. |
Enhances the focus of the pyro-electric sensor |
|
ABS Plastics |
3mm polished finish, reduces electrostatic interference on the PIR sensor. |
Easy to clean, retains white finish. |
Main Features
