Minimum Pack

Warranty

Weight (Kg)

Manufactured

10

5

1.8000

UK

FEATURE

DESCRIPTION

BENEFITS

Selectable EOL Resistors

The KX15ED incorporates selectable alarm resistor values of 6K8, 5K6, 4K7 &1K & tamper values of 5K6, 4K7, 2K2 and 1K catering for most control panels on the market.

Completely eliminates the need for separate resistors , therefore reducing installation time.

Patented Independent Floating Thresholds (IFT)

This technology patented by Pyronix allows the detector to respond to the environmental changes by automatically adjusting its levels of immunity to background disturbances.

Greater stability, reduces risk of false alarm activations.

Adjustable sensitivity settings

Higher sensitivity for use in areas where fast detection is required. Adjustable sensitivity settings for installations in a more hostile environment.

Ensures suitability for most environments

Automatic Temperature Compensation

When the product is used in a hot environment this technology automatically adjusts the detectors sensitivity allowing it to retain its range even when the external temperature equals the external body temperature of 32 DegC

Guarantees optimum performance at all times

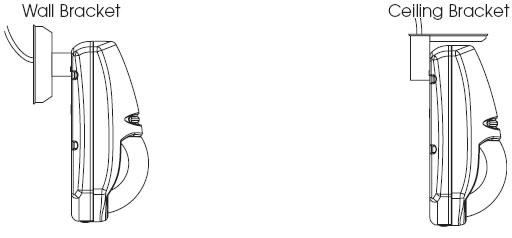

Tamper Proof Brackets

Supplied with both wall & ceiling mount brackets which provides access for up to two 8 core cables (Tamper kit optional)

Allows ease of installation whilst enhancing tamper protection

Multi-angular LED Indication

A clear plastic pipe channels the light from the LED to the face of the detector making the LED indication highly visible from a multitude of angles.

Enables walk testing to be undertaken with ease and accuracy ensuring the detector covers the desired area.

Sealed Optics

Protects from possible infestation from insects, shields air movement in front of the pyro electric sensor and protects against adverse reflections from inside the detector housing.

Enhances the focus of the pyro-electric sensor

ABS Plastics

3mm polished finish, reduces electrostatic interference on the PIR sensor.

Easy to clean, retains white finish.

Security Grading

Environmental Class

ATS

2

2

N/A
