18m Economy Curtain PIR Detector
KX18EC

Main Features

Selectable End of Line (EOL)resistors

Aspherical lens

Supplied with 2 lenses:
- 18m Solid vertical curtain
- 30m Long Range

Intelligent noise reducing Independent Floating Thresholds (IFT)

Supplied with wall and ceiling brackets

5 Year manufacturers warranty

ELECTRICAL SPECIFICATION

Electrical

Operating Voltage

9 - 16VDC (12V nominal)

Current Consumption - No Alarm State

12mA (12V nominal)

Current Consumption - Alarm State

11mA (12V nominal)

Relay

Solid State

Relay Output

60VDC, 50mA, Protected

Tamper Switch

12V max, 50mA max

RFI Immunity to Continuous Wave (CW) 80-2000MHz

75V/m

RFI Immunity to Amplitude Modulation (AM) 80-2000MHz

25 V/m

RFI Immunity to Pulse Modulation (PM) 80-2000MHz

25 V/m


Operating Features

Alarm period of

2.5 seconds

Detection Speed

0.3 - 3m/s

Operating Temperature

-30oC to +70oC

Storage Temperature

-40oC to +80oC


Optical

White Light Filter

6500 Lux

Optics

Sealed

Lens

Fresnel array, ‘Grooves in’ infrared compensated

Protection

Ultraviolet Light Filter


Mounting

Optimum Coverage Height

1.8-2.4m


DISTRIBUTOR PACKING INFORMATION

Minimum Pack

Warranty

Weight (Kg)

Manufactured

10

5

1.8000

UK


PRODUCT FEATURES

FEATURE

DESCRIPTION

BENEFITS

Selectable EOL Resistors

The KX15EC incorporates selectable alarm resistor values of 6K8, 5K6, 4K7 &1K & tamper values of 5K6, 4K7, 2K2 and 1K catering for most control panels on the market.

Completely eliminates the need for separate resistors, therefore reducing installation time.

Patented Independent Floating Thresholds (IFT)

This technology patented by Pyronix allows the detector to respond to the environmental changes by automatically adjusting its levels of immunity to background disturbances.

Greater stability, reduces risk of false alarm activations

Adjustable sensitivity settings

Higher sensitivity for use in areas where fast detection is required. Adjustable sensitivity settings for installations in a more hostile environment

Ensures suitability for most environments

Automatic Temperature Compenstation

When the product is used in a hot environment this technology automatically adjusts the detectors sensitivity allowing it to retain its range even when the external temperature equals the external body temperature of 32oC

Guarantees optimum performance at all times

Tamper Proof Brackets

Supplied with both wall & ceiling mount brackets which provides access for up to two 8 core cables (Tamper kit optional)

Allows ease of installation whilst enhancing tamper protection

Multi-angular LED Indication

A clear plastic pipe channels the light from the LED to the face of the detector making the LED indication highly visible from a multitude of angles.

Enables walk testing to be undertaken with ease and accuracy ensuring the detector covers the desired area.

Sealed Optics

Protects from possible infestation from insects, shields air movement in front of the pyro electric sensor and protects against adverse reflections from inside the detector housing.

Enhances the focus of the pyro-electric sensor

ABS Plastics

3mm polished finish, reduces electrostatic interference on the PIR sensor.

Easy to clean, retains white finish.

Solid Vertical Curtain Detection

Ensures solid vertical curtain coverage

Ideal for protecting areas such as windows, doors or ceilings


EN50131

Security Grading

Environmental Class

ATS

2

2

N/A


LENS COVERAGE

SUPPLIED

18m Vertical Curtain


30m Long Range


APPLICATIONS

VERTICAL CURTAIN


CORRIDOR LONG RANGE

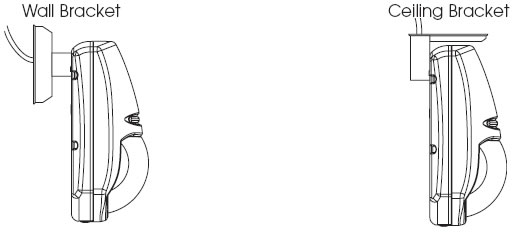

BRACKET
