6 Zone Control Panel with In-built Digital
Communicator
Matrix 6
 Main Features
• 1 Partition with 1 account code
• 4 Arm modes
• 6 Fully programmable zones
• 4 Programmable outputs
• 15 User codes
• 3 Telephone numbers
• 500 Event (Real Time) log
• Contact ID
• Up to 4 Icon keypads
• MX-Voice compatible
• Up/Downloading capability
PRODUCT FEATURES
|
FEATURE |
DESCRIPTION |
|
6 Fully programmable zones |
All zones can be programmed entry/exit, access, immediate, omitted, fire, PA, tamper, key box, shunt keypad, momentary keyswitch, latch keyswitch, 24hr |
|
4 Arm Modes |
All 6 zones can be configured in a different way for each arm mode to create 4 different home and away combinations to satisfy end user requirements |
|
Zone loop configuration |
Zones can be individually configured as DEOL, SEOL, N/O, N/C |
|
Fast zones option |
Enables connection of shock sensors on zones 4,5 and 6 for 30 ms fast zone loop response time |
|
Contact ID format |
Full event reporting over the telephone line to a digital receiver |
|
Pyronix PC format |
Full event reporting over the telephone line to a PC using a modem and MX-MON receiving software |
|
MX-Voice |
Using this module it is possible to send a maximum duration of 72 secs pre-recorded voice messages to the end users’ phone. 8 different messages may be programmed |
|
RS 232 output |
This output enables programming and viewing the event log from a local PC connection |
|
4 Fully programmable outputs |
Fully programmable outputs that can be used with radio transmitters, siren and other external devices |
|
Heavy duty lightning protection |
High protection for installation in environments where lightning could damage the digital communicator |
|
MX-485 Network |
Ability to be used with MX-485 Network |
ADDITIONAL ACCESSORIES
|
PRODUCT NAME |
DESCRIPTION |
PRODUCT CODE |
|
MX-ICON |
User friendly ICON LCD keypad |
FP12030 |
|
MX-VOICE |
Voice module |
FP14600 |
|
RS232 CABLE LINK |
Enables local programming |
FP11480 |
|
MX-UDL |
Up / downloading Software |
Available From www.pyronix.com/ downloads |
|
MX-MON |
Monitoring software |
FP12010 |
|
MX-INSTCD |
Manual & software collection |
FP12000 |
EN50131
|
Security Grading |
Environmental Class |
ATS |
|
2 |
2 |
2 |

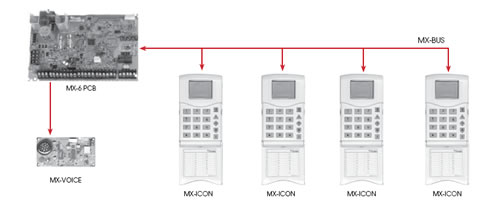

BUS DIAGRAM
DISTRIBUTOR PACKING INFORMATION
|
Minimum Pack |
Warranty |
Weight (Kg) |
Manufactured |
|
10 |
2 |
26.7000 |
UK |
ELECTRICAL SPECIFICATION
Fuse Protection
|
AC input |
2A |
|
AUX |
1A |
|
Keypad AUX |
1A |
|
Battery input |
2A |
|
Mains Fuse |
T250mA |
Environmental
|
Operating Temperatures |
-0° to 40°C |
|
Storage Temperature |
-20°C to 60°C |
Zones
|
Number of programmable zones |
6 zones |
|
Zone loop configuration |
N/C, N/O, DEOL, SEOL |
|
Zone current loop |
0.5 mA max |
|
Normal zone loop timers |
0.3 sec |
|
Fast zone loop timers |
0.03 sec |
|
Zone wire resistance |
<470 Ohm |
|
PGM4 |
Open Collector, 500mA |
PGM Outputs
|
PGM1 |
Relay Contact, 30V DC 3A |
|
PGM2, PGM3 |
Open Collector, 200mA |
Digital Communicator
|
Digital Communicator
|
Analogue
|
|
Lighting protection
|
6.75kV/125Amps
|
Power Supply
|
Power Input
|
17V AC
|
|
Low Voltage output
|
13.8V DC regulated
|
|
Max capacity power output (incl panel)
|
1.25A
|
|
Max power for external devices (excluding battery)
|
600 mA
|
|
Transformer
|
Primary: 230VAC, 50Hz, 20W Secondary: 17VAC, 1.25A
|
Current Consumption
|
PCB alone |
60mA |
|
MX-Icon keypad |
40mA to 60mA |
Battery
|
Capacity
|
2.8 – 7.2 A/h
|
|
Protection on Battery Terminals
|
Short & reverse
|
|
Battery charge
|
Min 6V
|
PRODUCT OPTIONS
PYRONIX PRODUCT CODE BY ASSEMBLY OPTION
| |
PCB + ICON RKP* + Poly Cabinet |
|
Keypad Options
|
Language
|
Product Code
|
Weight
|
|
ICON
|
|
FPMX6006
|
1.830 Kg
|
| |
PCB + ICON RKP* + Poly Cabinet + Transformer + Mains Connector + Tamper Kit |
|
Keypad Options
|
Language
|
Product Code
|
Weight
|
|
ICON
|
|
FPMX6002
|
2.520 Kg
|
| |
PCB + ICON RKP* |
|
Keypad Options
|
Language
|
Product Code
|
Weight
|
|
ICON
|
|
FPMX6008
|
0.710 Kg
|
|
