8 Zone Local Control Panel with 6 Digital
Outputs
Sterling 10
 Main Features
1 Partition & 4 Arm modes
8 Fully programmable N/C zones
2 Additional dedicated bell and cabinet tamper N/C zones
2 Programmable outputs (PGM)
6 Digital events outputs
1 Dedicated siren output
1 Dedicated strobe output
7 User codes
100 event memory log
Supplied with Sterling Icon or Sterling LCD keypad
Polycarbonate cabinet: 1.2A power supply
2 Year manufacturers warranty
PRODUCT FEATURES
|
FEATURE
|
DESCRIPTION
|
|
4 Arm modes
|
All 8 zones can be configured in a different way for each Arm Mode to create 4 different home and away combinations to satisfy end user requirements.
|
|
8 Fully Programmable Zones
|
Can be programmed as entry/exit, access, immediate, omitted, fire, tamper, momentary keyswitch, latch keyswitch, 24hr
|
|
6 dedicated event outputs
|
Outputs that can be used with external digital communicators, radio transmitters and other external devices
|
|
4 Dedicated Zones
|
Push to Set (PTS), Personal Attack (PA), Bell and keypad
|
|
Tamper Protection
|
Global Tamper, Bell, Keypad
|
|
Dedicated keys
|
Personal Attack (PA) and Fire
|
DISTRIBUTOR PACKING INFORMATION
|
Minimum Pack |
Warranty |
Weight (Kg) |
Manufactured |
|
10 |
2 |
27.1000 |
UK |
DEDICATED CONNECTIONS
EN50131
|
Security Grading |
Environmental Class |
ATS |
|
1 |
2 |
N/A |
ELECTRICAL SPECIFICATION
Current Consumption
|
PCB only |
130mA |
|
Sterling Icon keypad |
60mA |
|
Sterling LCD keypad |
100mA |
Battery
|
Capacity |
2.8 – 7A/h |
|
Protection on Battery Terminals |
Short & reverse |
|
Battery charge commencing |
5.5V |
Fuse Protection
|
AC input |
2A |
|
AUX |
1A |
|
Keypad AUX |
1A |
|
Battery input |
2A |
Environmental
|
Operating Temperatures |
0° to 40°C |
|
Storage Temperature |
-20 to 60°C |
Zones
|
Number of programmable zones |
8 zones |
|
Zone loop configuration |
N/C |
|
Zone current loop |
0.76 to 1.03mA |
|
Normal zone loop timers |
0.35 secs |
|
Zone Activation resistance |
2k ohms (Maximum) |
PGM Outputs
|
PGM1 |
200mA @ 12vDC |
|
PGM2 |
10mA @ 12vDC |
|
Siren Output |
3A @ 30vDC |
|
Strobe Output |
3A @ 30vDC |
Digital Outputs
|
Line fail, set, confirmed, abort, fire,
alarm, personal attack. |
10mA@ 12VDC |
Power Supply
|
Power Input |
17V AC |
|
Low Voltage output |
13.8V DC regulated |
|
Max power for external devices (excluding battery) |
800 mA |
|
Transformer |
Primary: 230VAC, 50Hz, 20W Secondary: 17VAC, 1.25A |

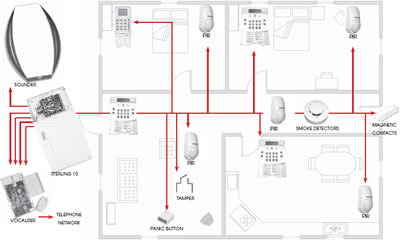

WIRING DIAGRAM
WIRING TO SOUNDER
WIRING TO A SPEECH DIALLER
PRODUCT OPTIONS
PYRONIX PRODUCT CODE BY ASSEMBLY OPTION
|
|
English (Fully Assembled + LCD RKP) |
|
Keypad Options |
Language |
Product Code |
Weight |
|
LCD |
|
FP13060 |
1.065 kg |
|
|
English (Fully Assembled + ICON RKP) |
|
Keypad Options |
Language |
Product Code |
Weight |
|
ICON |
|
FP13015ICON |
1.065 kg |
|
|
Portuguese (Fully Assembled + LCD RKP) |
|
Keypad Options |
Language |
Product Code |
Weight |
|
LCD |
|
FP13060POR |
1.065 kg |
|
|
Danish (Fully Assembled + LCD RKP) |
|
Keypad Options |
Language |
Product Code |
Weight |
|
LCD |
|
FP13060DAN |
1.065 kg |
|
|
Italian (Fully Assembled + LCD RKP) |
|
Keypad Options |
Language |
Product Code |
Weight |
|
LCD |
|
FP13060IT |
1.065 kg |
|
|
Italian (Fully Assembled + ICON RKP) |
|
Keypad Options |
Language |
Product Code |
Weight |
|
ICON |
|
FP13015ICONIT |
1.065 kg |
|
|
French (Fully Assembled + LCD RKP) |
|
Keypad Options |
Language |
Product Code |
Weight |
|
LCD |
|
FP13090GFR |
1.065 kg |
|
