6 Zone Local Control Panel
Sterling Compact
 Main Features
1 Partition & 3 Arm modes
4 Programmable and 2 dedicated N/C zones
1 Dedicated siren output
1 Dedicated strobe output
On-board keypad
Internal sounder included
Polycarbonate cabinet: 0.8A power supply
2 Year manufacturers warranty
PRODUCT FEATURES
|
FEATURE |
DESCRIPTION |
|
3 Arm modes |
All 4 zones can be configured in a different way for each Arm Mode to create 3 different home and away combinations to satisfy end user requirements |
|
4 Fully programmable zones |
Can be programmed as entry / exit, access, immediate, omitted with an option for fire |
|
2 Dedicated zones |
Personal Attack (PA) and Tamper |
|
Zone loop configuration |
Normally Closed (N/C) only |
|
Dedicated keys |
Personal Attack (PA) and Fire |
DISTRIBUTOR PACKING INFORMATION
|
Minimum Pack |
Warranty |
Weight (Kg) |
Manufactured |
|
10 |
2 |
11.0000 |
UK |
DEDICATED CONNECTIONS
EN50131
|
Security Grading |
Environmental Class |
ATS |
|
1 |
2 |
N/A |
ELECTRICAL SPECIFICATION
Zones
|
Number of programmable Zones |
4 zones |
|
Zone loop configuration |
N/C |
|
Zone current loop |
1.2 to 1.5mA |
|
Normal zone loop timers |
0.35 secs |
|
Zone Wire Resistance |
2K ohms (Maximum) |
Outputs
|
Siren Output Output Collector |
500mA |
|
Strobe Output Output Collector |
500mA |
Power Supply
|
Power Input |
17V AC |
|
Low Voltage output |
13.2V fused |
|
Transformer required |
Primary: 230VAC, 50Hz, 20W |
|
Max power for external devices (excluding battery) |
50mA |
Current Consumption
|
PCB alone |
45mA |
|
Battery |
|
|
Capacity |
2.1 A/h |
|
Protection on Battery Terminals |
Short & reverse |
|
Battery Charge |
13.8V |
Fuse Protection
Environmental
|
Operating Temperatures |
0° to 40°C |
|
Storage Temperature |
-20° to 60°C |

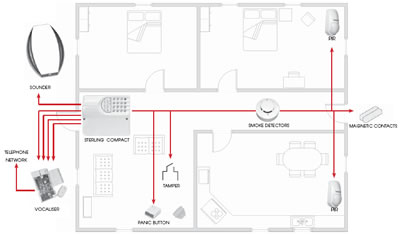

WIRING DIAGRAM
WIRING TO A SOUNDER
WIRING TO A SPEECH DIALLER
PRODUCT OPTIONS
PYRONIX PRODUCT CODE BY ASSEMBLY OPTION
| |
English Sterling Compact Keyswitch |
|
Keypad Options |
Language |
Product Code |
Weight |
|
ICON |
|
FP03160KS |
1.065 kg |
|
|
English Sterling Compact |
|
Keypad Options |
Language |
Product Code |
Weight |
|
ICON |
|
FP03160 |
1.065 kg |
|
|
Italian Sterling Compact Keyswitch |
|
Keypad Options |
Language |
Product Code |
Weight |
|
ICON |
|
FP03160IT |
1.065 kg |
|
|
Russian Sterling Compact |
|
Keypad Options |
Language |
Product Code |
Weight |
|
ICON |
|
FP03160RUS |
1.065 kg |
|
